For maximum transparency and control over energy flows.
We digitalize existing metering infrastructure without complex modifications. With flexible hardware and various transmission methods – independent of network and system landscape. For scalable data usage in our portal or your own systems.
OUR B2B SOLUTION

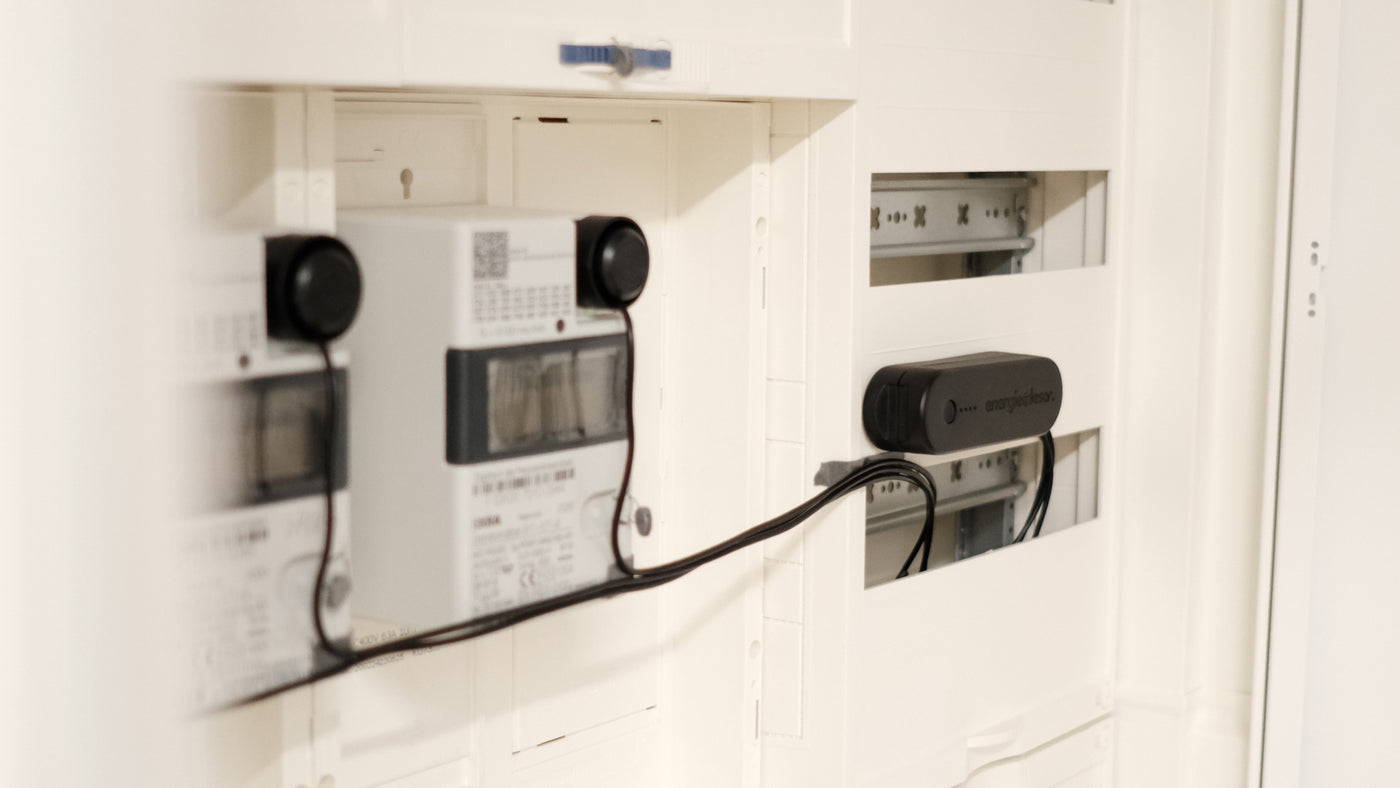

Node
The energieleser.node connects up to four reading heads for electricity, gas, water, and heat meters and reliably transmits the meter data via wireless M-Bus to the gateway. No Wi-Fi or power connection is required at the meter. Thanks to wireless M-Bus, the node easily overcomes thick walls and multiple floors – even to existing gateways (which receive w M-Bus).
Battery (2 years*) or power supply
Data reception via read heads
Data transmission via wireless M-Bus
*varies individually based on data frequency

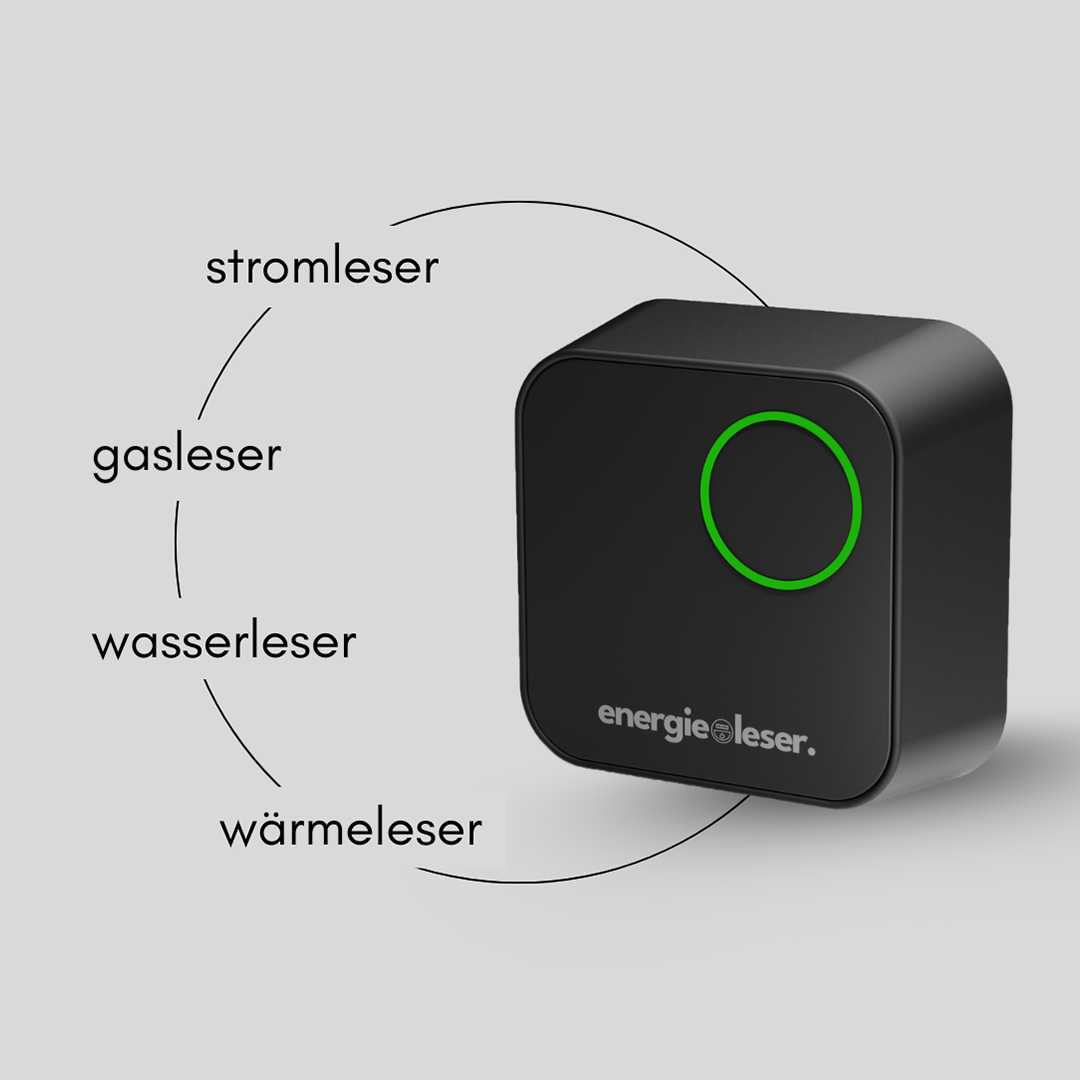

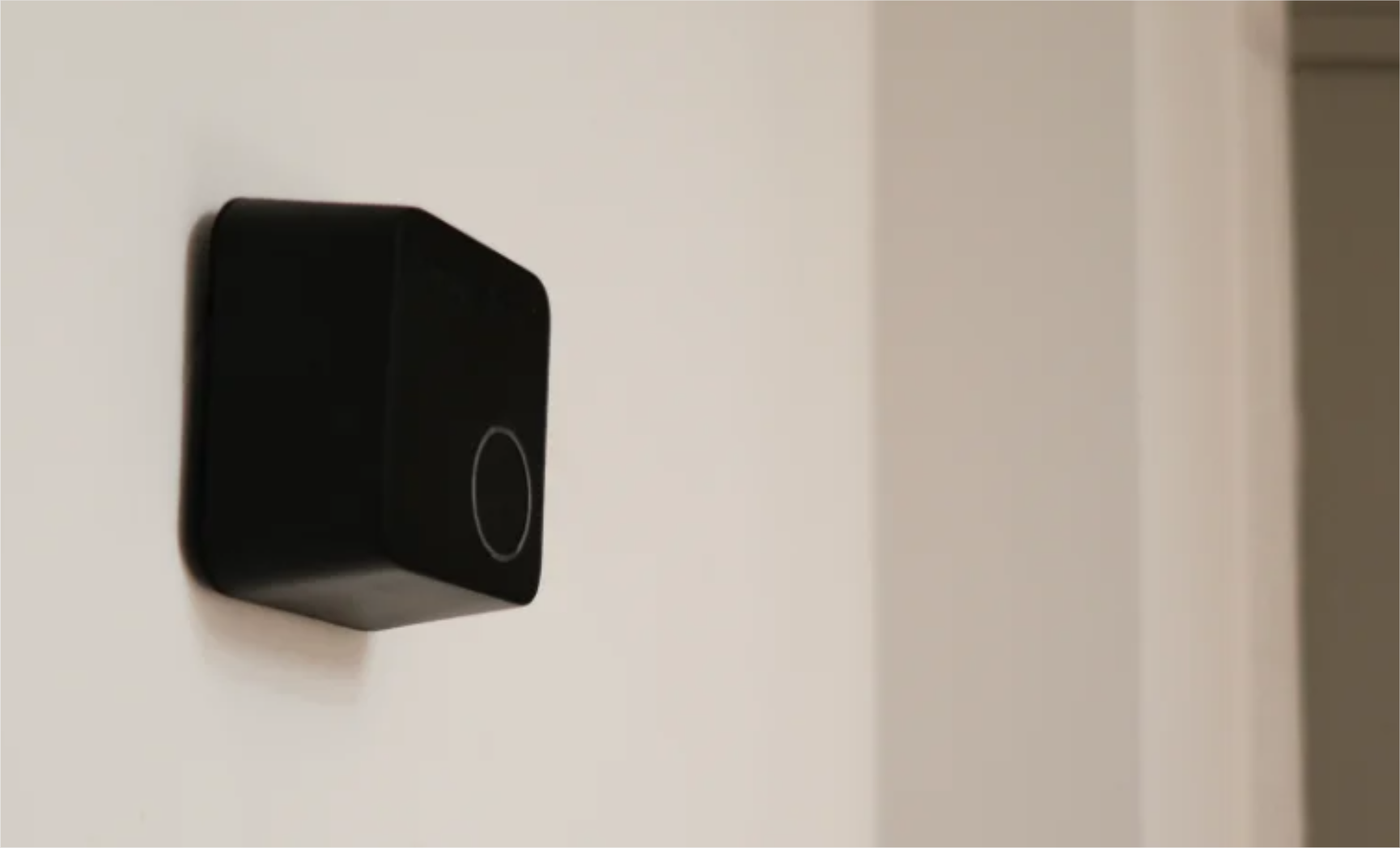

Gateway
The gateway is the heart of the energieleser system. Placed in the hallway, it receives wireless M-Bus signals from the nodes, as well as any compatible radio meters and OMS devices. The integrated SIM card ensures that data is securely transmitted without Wi-Fi to the B2B platform or the desired endpoint. Depending on requirements, the gateway can be battery-powered or connected via a fixed power supply.
Battery (5-7 years*) or power connection
Data reception via wireless M-Bus
Data transfer via SIM card
*varies individually based on data frequency

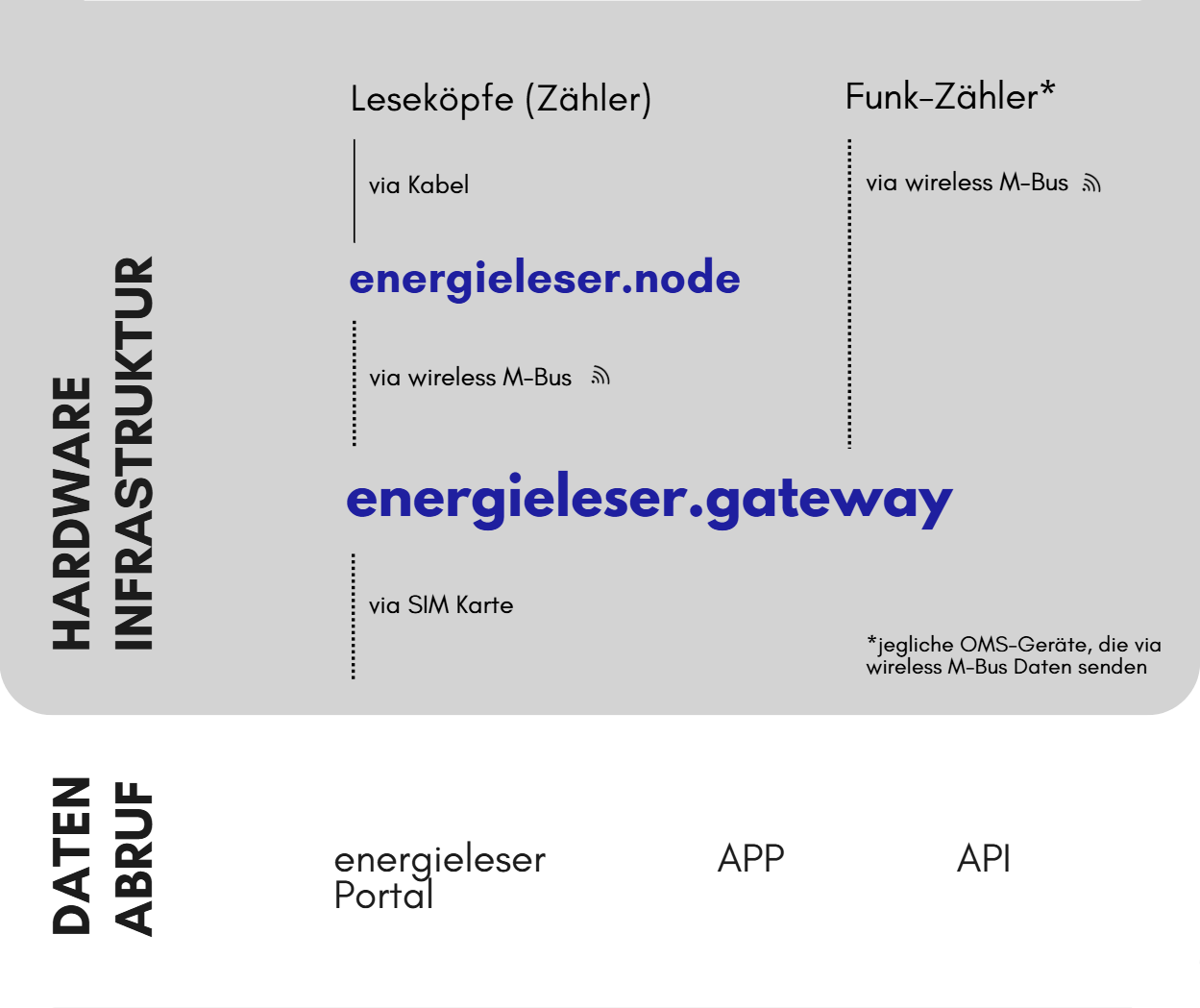

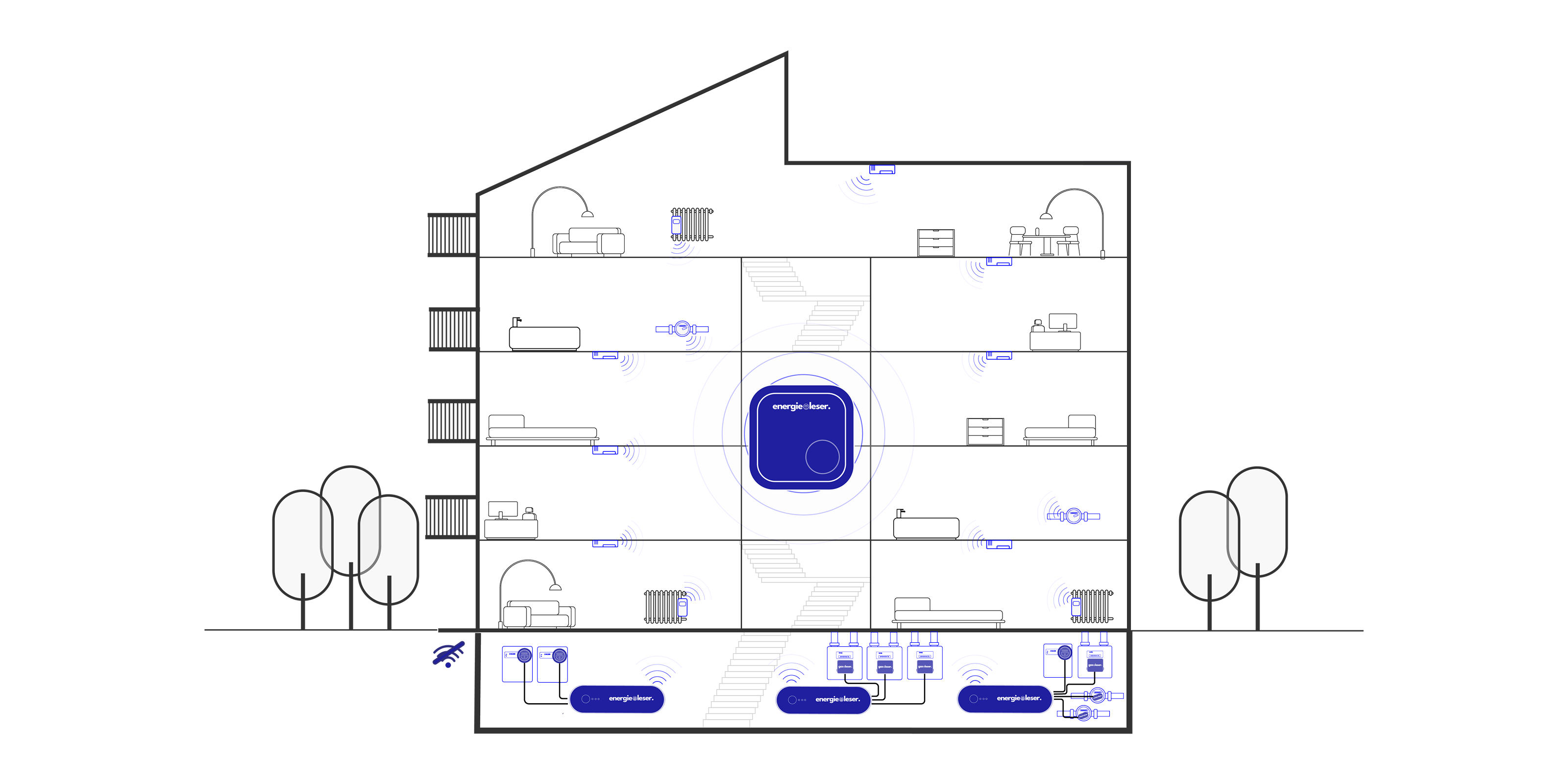

One building. Many meters. One solution - the energieleser system connects all types of meters – flexible, scalable and completely independent of Wi-Fi. Basements without power supply, thick walls, or many floors: No problem. The system is smart – and can be seamlessly integrated into existing B2B infrastructures.
THE ENERGY READER PORTAL
ALL PROPERTIES, ONE PORTAL
Manage all objects and meters across all locations in the energieleser portal – structured, clear, and without on-site appointments.
NO NEW METERS NEEDED
We build on your existing meter infrastructure – this saves high investment costs for new meters and makes the transition quick and uncomplicated.
API FOR uVI & UTILITY BILLING
Export data, connect via API or send directly to your existing systems – as a basis for interim consumption information (ICI) and utility bill.
Individual consultation.
